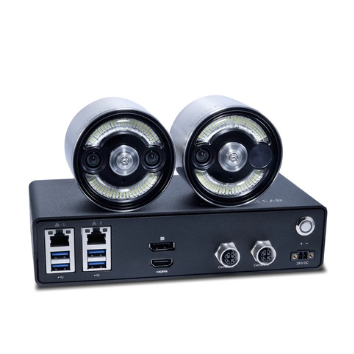

Camera C2 is a high-performance CNC machine monitoring camera system designed for harsh machining environments. It combines Ultra-HD video quality, powerful LED lighting, and a spinning protective window that keeps the lens clean even during heavy coolant flow.
The system allows operators, engineers, and management to monitor machining processes in real time, record operations, and analyze tool performance without opening the machine door—improving both safety and productivity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Camera Resolution | Up to 4K Ultra HD |
| Frame Rate | Up to 60 fps |
| Lens Options | F1 (Close range) / F2 (Long range) / Dual lens |
| Viewing Distance | 200 mm – 6000 mm (lens dependent) |
| Protection System | Integrated spinning safety window |
| Lighting | Built-in high-intensity LED illumination |
| Mounting Options | Top view / Side view / Spindle view |
| Output Interfaces | HDMI, Ethernet, USB |
| Streaming Protocols | RTSP / TCP-IP |
| Recording | USB & Network storage |
| Power Supply | 24 V DC |
| Cable Length | Standard 10 m / Optional up to 20 m |
| Operating Environment | Coolant, oil mist, chips, vibration |
| Ingress Protection | Industrial-grade sealed housing |
| Maintenance | Low / virtually maintenance-free |
Key Benefits Always Clear Visibility
The spinning window removes coolant, oil, and chips instantly, ensuring an uninterrupted clear view.
Enhanced Operator Safety
No need to open machine doors during machining—reduces risk and improves compliance.
Process Optimization
Helps in analyzing tool paths, chip formation, and cycle behavior for better machining efficiency.
Remote Monitoring
Live streaming allows supervisors to monitor machines remotely via network connection.
High-Quality Documentation
4K recording supports training, audits, customer proof, and troubleshooting.
Flexible Installation
Multiple mounting options adapt to milling, turning, 5-axis, and grinding machines.
Reduced Downtime
Early detection of tool wear or abnormal machining prevents costly breakdowns.
